| Engine | ||
| Make | Caterpillar | |
| Model | C6.6 Acert | |
| Gross Power | 174 hp | 129.8 kw |
| Net Power | 166 hp | 123.8 kw |
| Displacement | 403 cu in | 6.6 L |
| Torque Measured @ | 1400 rpm | |
| Number of Cylinders | 6 | |
| Net Torque | 596 lb ft | 808.1 Nm |
| Operational | ||
| Operating Weight | 44312.9 lb | 20100 kg |
| Fuel Capacity | 102 gal | 386.1 L |
| Cooling System Fluid Capacity | 8.5 gal | 32.2 L |
| Engine Oil Capacity | 4 gal | 15.1 L |
| Front Diff Fluid Capacity | 2.8 gal | 10.6 L |
| Rear Diff Fluid Capacity | 3.7 gal | 14 L |
| Hydraulic System Fluid Capacity | 71 gal | 268.8 L |
| Alternator Supplied Amperage | 75 amps | |
| Hydraulic System Relief Valve Pressure | 5076 psi | 34997.8 kPa |
| Hydraulic Pump Flow Capacity | 77 gal/min | 291.5 L/min |
| Oscillating Axle Angle | 9 degrees | |
| Max Steering Angle | 35 degrees | |
| Tire Size | 10.00-20 16PR, dual | |
| Transmission | ||
| Number of Forward Gears | 2 | |
| Number of Reverse Gears | 2 | |
| Max Travel Speed | 23 mph | 37 km/h |
| Swing Mechanism | ||
| Swing Speed | 10.5 rpm | |
| Swing Torque | 33928 lb ft | 46000.2 Nm |
| Buckets | ||
| Reference Bucket Capacity | 0.97 yd3 | 0.74 m3 |
| Minimum Bucket Capacity | 0.74 yd3 | 0.57 m3 |
| Maximum Bucket Capacity | 2.1 yd3 | 1.6 m3 |
| Boom/Stick Option (MEX) 1 | ||
| Boom/Stick Option (MEX) 1 | VA Boom / stick 2.2m | |
| Shipping Height of Unit | 10.4 ft in | 3170 mm |
| Shipping Length of Unit | 29.1 ft in | 8870 mm |
| Max Digging Depth | 18.9 ft in | 5750 mm |
| Max Reach Along Ground | 29.4 ft in | 8970 mm |
| Max Cutting Height | 31.9 ft in | 9710 mm |
| Max Loading Height | 22 ft in | 6700 mm |
| Max Vertical Wall Dig Depth | 10.6 ft in | 3220 mm |
| Boom/Stick Option (MEX) 2 | ||
| Boom/Stick Option (MEX) 2 | VA Boom / stick 2.8m | |
| Shipping Height of Unit | 10.8 ft in | 3300 mm |
| Shipping Length of Unit | 28.9 ft in | 8820 mm |
| Max Digging Depth | 20.9 ft in | 6360 mm |
| Max Reach Along Ground | 31.5 ft in | 9590 mm |
| Max Cutting Height | 33.5 ft in | 10210 mm |
| Max Loading Height | 23.6 ft in | 7190 mm |
| Max Vertical Wall Dig Depth | 13 ft in | 3960 mm |
| Boom/Stick Option (MEX) 3 | ||
| Boom/Stick Option (MEX) 3 | One-piece Boom / stick 2.2m | |
| Shipping Height of Unit | 10.5 ft in | 3190 mm |
| Shipping Length of Unit | 29.1 ft in | 8870 mm |
| Max Digging Depth | 18.7 ft in | 5700 mm |
| Max Reach Along Ground | 29.5 ft in | 9000 mm |
| Max Cutting Height | 28.7 ft in | 8760 mm |
| Max Loading Height | 19.4 ft in | 5900 mm |
| Max Vertical Wall Dig Depth | 9.4 ft in | 2880 mm |
| Boom/Stick Option (MEX) 4 | ||
| Boom/Stick Option (MEX) 4 | One-piece Boom / stick 2.8m | |
| Shipping Height of Unit | 10.9 ft in | 3330 mm |
| Shipping Length of Unit | 29.4 ft in | 8950 mm |
| Max Digging Depth | 20.7 ft in | 6300 mm |
| Max Reach Along Ground | 31.5 ft in | 9600 mm |
| Max Cutting Height | 30.1 ft in | 9170 mm |
| Max Loading Height | 20.6 ft in | 6270 mm |
| Max Vertical Wall Dig Depth | 11.9 ft in | 3620 mm |
| Dimensions | ||
| Overall Width | 8.4 ft in | 2550 mm |
| Overall Width - Outriggers Down | 12.5 ft in | 3820 mm |
| Height to Top of Cab | 10.4 ft in | 3170 mm |
| Wheelbase | 8.5 ft in | 2600 mm |
| Ground Clearance | 1.2 ft in | 370 mm |
| Tail Swing Radius | 8.2 ft in | 2500 mm |
| Upper Structure Clearance | 4.2 ft in | 1280 mm |
CAT M318D
| Daily | Weekly | Monthly | |
|---|---|---|---|
| Reg |
$725
|
$2,900
|
$9,300
|
| Corp |
$600
|
$2,500
|
$8,500
|
+ Delivery Rate & Operator Rate
We honor the lowest rate on all long term rentals.

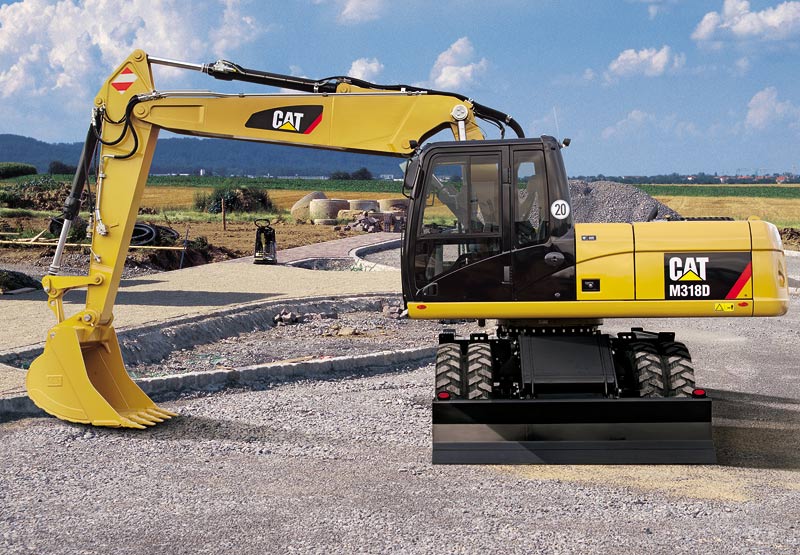

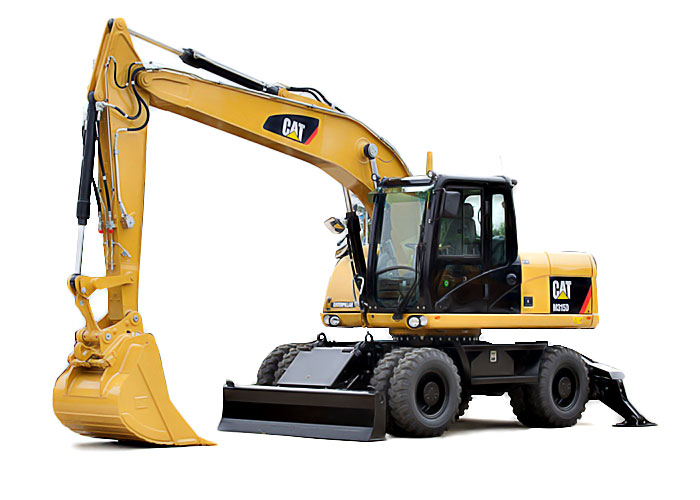

CAT M318D Mobile Excavator available from Rent1
Demolition ready excavator rentals: when you rent a CAT M318D from Rent1, it has the option to attach a cab guard and a hydraulic thumb.
Power: The M318D uses the CAT C6.6 ACERT engine. It's a 129 kW 178 hp gross power engine. The M318D has an operating weight of 44,312.9 lbs. The ACERT engine is Tier 3 certified for minimal exhaust.
Versatile: Able to handle most jobs thrown at it, the M318D excavator rental can and will do a great job digging, scaping, moving and using various attachments to get the job site into working order. The main characteristic that sets the M318D apart from a normal excavator is the lack of treads
Comfort: The M318D mobile excavator rental has an ergonomically comfortable cab for the operator.
Hydraulics: The M318D excavator rental hydraulics system is deisgned with reliability and controllability in mind.
What can you do with a CAT 321D LCR excavator rental?
- Larger commercial or residential structure demolition
- Dig up sewage pipes or electrical conduit
- Break up large areas of concrete with the hammer attachment
- Backfill trenches
- Dig trenches
- Prepare grounds for landscaping
- Remove debris from construction sites
- Remove larger trees or stumps
- Load sand and gravel
We provide quick delivery on excavator rentals, and compact track loader rentals throughout the Lower Mainland of Greater Vancouver, the Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford,Chilliwack, Whistler, Victoria, Nanaimo. See our Delivery rates for more details.
Specification
Click here for full specifications on the CAT M318D
