Genie ZX-135/70

  Daily Weekly Monthly
+ Delivery Rate & Operator Rate
We honor the lowest rate on all long term rentals.

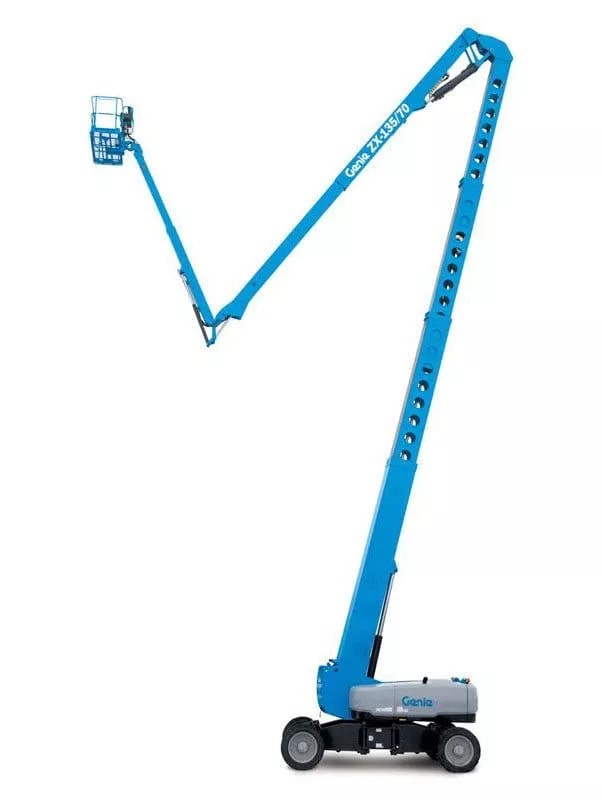

  • Ideal for outdoor construction and industrial applications, the Genie® ZX®-135/70 articulating boom lift delivers access to up, over and out applications inaccessible by a traditional jib. Four-wheel drive with full-time positive traction means that this articulating boom can handle rough jobsite ground conditions with ease.

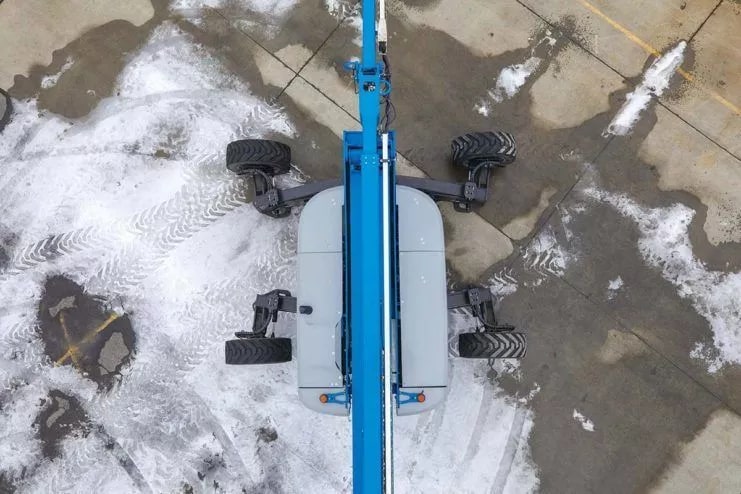

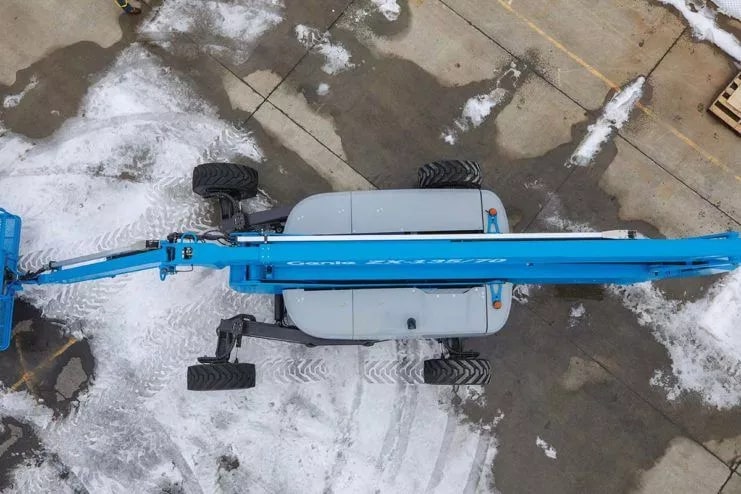

    • Mini Genie X-Chassis™ system extends and retracts to provide both stability on the job and a narrow profile for transport
    • Telescoping Jib-Extend™ jib extends from 12 to 20 ft (3.66 to 6.10 m) and provides a 110˚ vertical range of motion

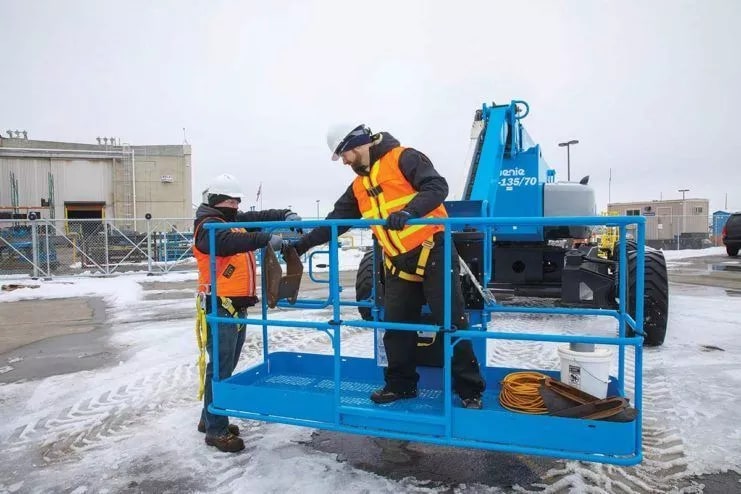

    • 360˚ continuous rotation turntable and 160˚platform rotation for fast, easy positioning
    • Four-wheel steer with front-wheel, rear-wheel, crab and coordinated steer options available to provide additional maneuverability
Operating Weight 46,500 lb / 21,092 kg
Horse Power
Max Forward Speed 3.0 mph / 4.8 km/h
Overall Width 8 ft 2 in / 2.49 m
Load Body Width 8 ft / 2.44 m OR 6 ft / 1.83 m
Max Payload 600 lb / 272 kg
