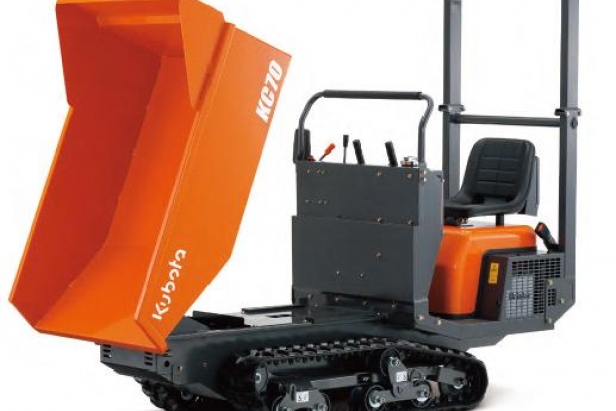

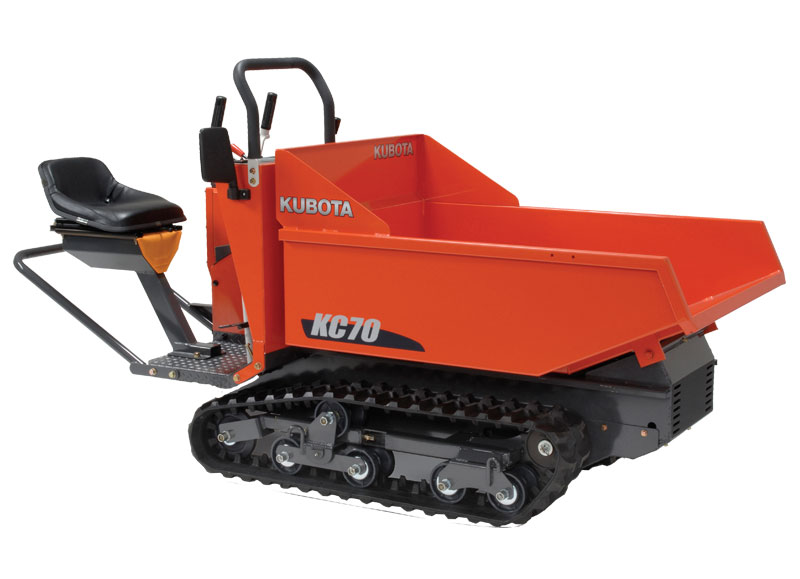

Kubota KC 70 rubber track carrier

  Daily Weekly Monthly
+ Delivery Rate & Operator Rate
We honor the lowest rate on all long term rentals.

The Kubota KC 70 rubber tracked carrier rental (formerly known as the Kubota KC51) is compact and powerful rubber track crawler carrier that will save you time and money. With a machine weight of 992 lbs (450 kg), it has an impressive load capacity of more than 1.5 times its weight at 1543 lbs (700 kg).


  • 1543 lbs load capacity
  • 34" overall width
  • Hydraulic dump forward
  • Electric start
  • 992 lbs machine weight

The Kubota KC 70 tracked dumper rental is a compact workhorse, especially under extreme  conditions where ordinary trucks or skid steers can not operate.

The KC 70's high floatation capability associated with low ground pressure allows productive operation in wet muddy conditions and minimizes disturbance to environmentally sensitive areas.

The KC 70 is ideal for use on:

  • Wet ground
  • Sand
  • Snow
  • Soft and swampy areas
  • Narrow spaces

Contact RENT1 today for more information on how to rent a Kubota rubber tracked crawler carrier.

Specification Detail
Model Name KC70-4
Deck Model Kubota OC60
Type Oil & Air cooled, 4 cycle, diesel, Tier 4
Cylinders One
  Engine gross @ rpm 6.0 HP (4.5 kW) @ 1700 RPM
Starter Electric
Weight 992 lbs. (450 kg)
Overall length 95.1 in. (2415 mm)
Overall width 34.6 in. (880 mm)
Overall height 51.6 in. (1310 mm)
Ground clearance 5.1 in. (130 mm)
Cargo Box
Length 49.2 in. (1250 mm)
Width 32.3 in. (820 mm)
Overall height 13.8 in. (350 mm)
Maximum payload capacity 1543 lbs. (700 kg)
Capacity 0.42/0.52 cu.yd., struck/heaped
Dumping angle 68º
Dumping direction Forward
Type of dump system available Hydraulic
Drive Train/Transmission
Low range
  Speed range 1.0/0.9 mph (1.6/1.5 kmh), for/rev
Medium range
  Speed range 1.9/1.9 mph (3.1/3.1 kmh), for/rev
High range
  Speed range 3.1/3.0 mph (5.0/4.8 kmh), for/rev
Brake type Internal expanding
Width 7.9 in. (200 mm)
