YANMAR C30

  Daily Weekly Monthly
Reg
$340
$1,475
$3,700
Corp
$325
$1,385
$3,575
+ Delivery Rate & Operator Rate
We honor the lowest rate on all long term rentals.

Need to rent a crawler carrier for extreme conditions

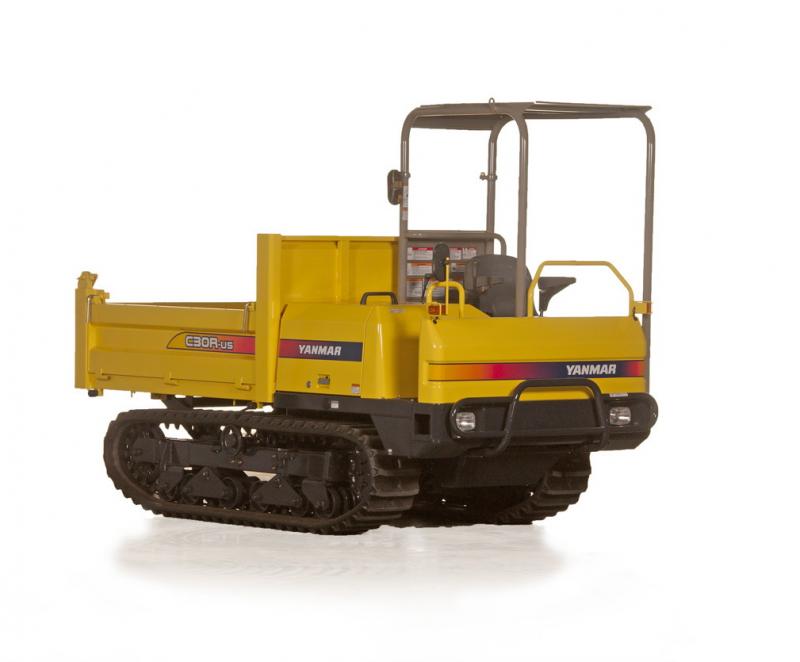

The heavy duty Yanmar C30 crawler carrier has a max payload of 2500 kg/5510 lb. It uses an IMT4 engine that puts out 34.1 hp (25.4 kW) of power.

The Yanmar C30 crawler carrier rental from Wescan Rentals is a sizeable unit but also fits well in any construction site. It's 10 ft 6 inches in length, 5 ft 5 inches wide and 7 ft 5 inches high

The C30R is great for all manner of terrain, and is a go to for places with:

  • Slopes
  • Sand and very dry areas
  • Snow and icy roads
  • Heavily muddy or swampy land

Contact RENT1 today for more information on how to rent a Yanmar crawler carrier.

OPERATING WEIGHT

Canopy 5,215 lbs (2,365kg)
Cabin N/A

ENGINE / MANUFACTURER

Type Yanmar Water-cooled 3 cylinder diesel
Model / Tier level 3TNV88-BDFW / IMT4
Output 34.1 HP ( 25.4 Kw ) / 3,000 RPM
Displacement 100.2 cu.in / 1,642 cu.cm

TRANSMISSION

Type Two Speed Automatic Hydrostatic with reduction gear

PERFORMANCE

Max. Paylord 5,510 lbs (2,500kg)
Dumping angle 58 degree
Dump Clearance 1' 4" (415mm)
Dump body Capacity/ Struck 1.15 cu. yds (0.88 cu. m)
Dump body Capacity/ Heaped 1.62 cu. yds (1.24 cu. m)
Traveling Speed/ Forward Low: 0 - 2.5mph(0-4.0 km/h), High: 0 - 6.8mph(0-11.0km/h)
Traveling Speed/ Reverse Low: 0 - 2.5mph(0-4.0 km/h), High: 0 - 6.8mph(0-11.0km/h)
Traction Force 5,510 lbs (24.5 kN)

UNDERCARRIAGE WITH STEEL REINFORCED RUBBER TRACK

Track shoes 1'1" (320mm)
Crawler width 10" (265mm)
Ground Contact Pressure/ w/o load 3.9psi (26.9 kPa)
/w/load 8.1 psi

BRAKE

Service Brake Pedal, Mechanical wet multiple disk
Parking Brake Lever, Mechanical type. Common with service brake

HYDRUALIC SYSTEM

Pump (for Dump) Gear
Control valve Single Spool, mechanical control
Pump Displacement 0.40 cu. in/rev (6.5 cu. in/rev)
Relief Valve Set Pressure 2,490 psi (17.2 Mpa)

DIMENSIONS

Overall length 10' 6" ( 3,200 mm )
Overall width 5' 5" (1,655mm)
Overall height 7' 5" ( 2,255 mm )

DUMP BODY DIMENSIONS (INSIDE)

L x W x H / one-way dump 5'6" (1,685) x 4'7" (1,410mm) x 1'3" (370mm)

TANK CAPACITY

Fuel 10.6 Gals ( 40.0 L )
Hydraulic 4.3Gals(18.0L)
