CASE CX225 MSR

  Daily Weekly Monthly
Reg
$725
$2,900
$9,300
Corp
$600
$2,500
$8,500
+ Delivery Rate & Operator Rate
We honor the lowest rate on all long term rentals.

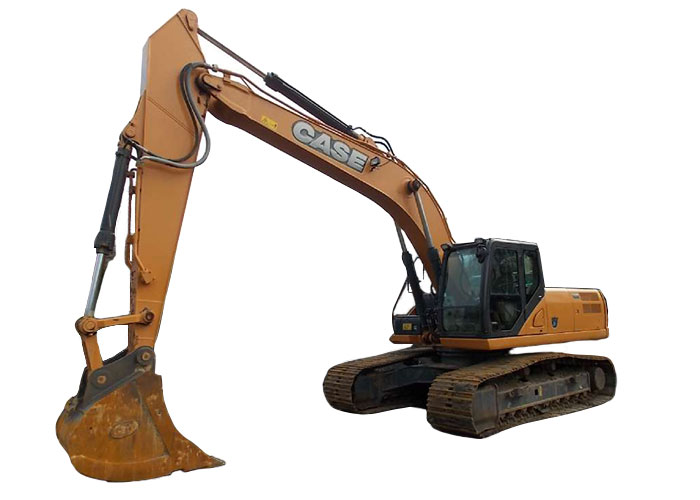

CASE Construction CX225 MSR Excavator available for rent from Rent1

Demolition ready excavator rentals: when you rent a CASE CX225 MSR from Rent1, it will come equipped with full cab guarding and a hydraulic thumb.

Power: The Izuzu 4HK1X is a turbo charged engine with 153 hp @ 1800 rpm. It is U.S. EPA Tier 3 certified and is charge air aftercooled.

Versatile: The CX225 excavator rental is the upper echilon of the mid-range of the CX series excavator rentals from Case Construction. The CX225 thrives on job sites where careful movement is the only option, such as digging a swimming pool in a residential area. Operators have said it has the performance of a 20-metric-ton machine and a work envelope of a 7-metric-ton standard configuration excavator. A track shoe width of only 23.6 inches allows for the CX225 MSR excavator rental to be maneuver in tight spaces very easily.

Hydraulics: ISO patttern pilot controls, position mode selector and power boost options on the hydraulics of the CX225 MSR rental make it a superb choice for power and efficiency.

What can you do with a CASE Construction CX225 MSR excavator rental?

  • Larger commercial or residential structure demolition
  • Dig up sewage pipes or electrical conduit
  • Break up large areas of concrete with the hammer attachment
  • Backfill trenches
  • Dig trenches
  • Prepare grounds for landscaping
  • Remove debris from construction sites
  • Remove larger trees or stumps
  • Load sand and gravel

We provide quick delivery on excavator rentals, and compact track loader rentals throughout the Lower Mainland of Greater Vancouver, the Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford,Chilliwack, Whistler, Victoria, Nanaimo. See our Delivery rates for more details.

Specifications

ENGINE
Emission Rating Tier 3
Engine make / model Isuzu 4 HKIX
Net Power - hp (kW) 153 (114.4)
Rated rpm - rpm 1800
Net Peak Torque - lbf / ft (Nm) 454 (616)
Max speed - mph (kph) 3.1 (5)
Max. Drawbar pull - lbf (kN) 42039 (187)


UNDERCARRIAGE
Track shoe width - inches (mm) 23.6 (600)
Ground Pressure - Std. Pad - PSI (kPa) 5.37 (34)


HYDRAULIC SYSTEM
Main pumps total flow - gallons (US) / min (lt/min) 100.3 (380)
Relief pressure, main - PSI (bar) 4970 (343)


SWING SYSTEM
Swing Speed - rpm 10.6


BOOM
Boom length - ft/in (m) 18 ft 8 in (5.7)
Arm length - ft/in (mm) 9 ft 10 in (3000)
Arm breakout force, normal - lbf (kN) 29230 (130)
Rating standard ISO 6015


WORKING RANGES
Max. Dig Depth - ft/in (mm) 22 ft (6700)
Reach at ground level - ft/in (mm) 31 ft 11 in (9730)
Depth of 8' bottom - ft/in (mm) 21 ft 5 in (6520)
Dump Height - ft/in (mm) 26 ft 4 in (8020)


LIFTING CAPACITIES AT GROUND LEVEL
Lift over end, 10' (3 050 mm) radius - lbs (kg) 18569 (8423)
Lift over end, Max. reach - lbs (kg) 6019 (2730)
Lift over side, 10' (3050 mm) radius - lbs (kg) 18569 (8423)
Lift over side, Max. reach - lbs (kg) 4617 (2094)


BUCKET
Bucket breakout force, normal - lbf (kN) not published


BLADE
Blade std or opt Standard


DIMENSIONS
Tail Swing Radius - ft/in (mm) 5 ft 8 in (1720)
Ground Clearance - inches (mm) 18 (460)


WEIGHTS
Operating Weight - lbs (kg) 53793 (24400)

Click Here for more specifications.
