CAT 321D LCR

  Daily Weekly Monthly
Reg
$725
$2,900
$9,300
Corp
$600
$2,500
$8,500
+ Delivery Rate & Operator Rate
We honor the lowest rate on all long term rentals.

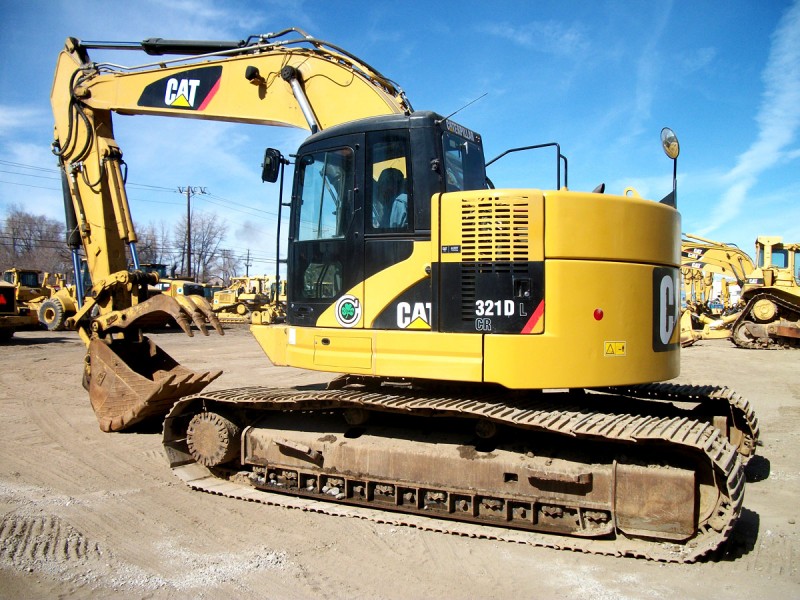

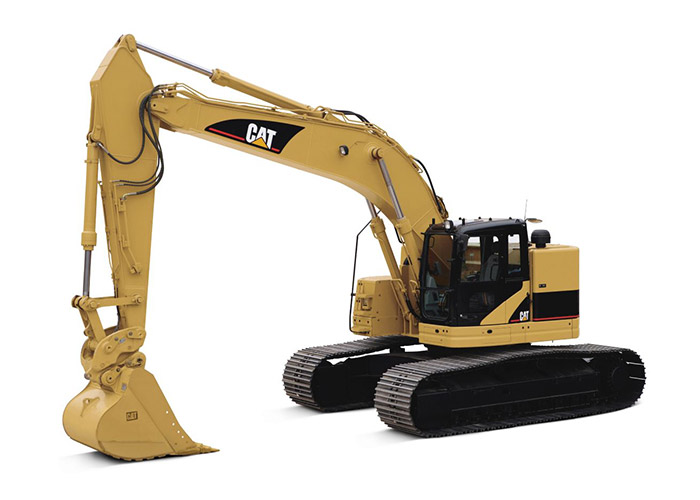

CAT 321D LCR Medium Excavator available for rent from Rent1

Demolition ready excavator rentals: when you rent a CAT 321D LCR from Rent1, it has the option to attach a cab guard and a hydraulic thumb.

Power: The C321D LCR uses the CAT C6.4 ACERT engine. It's a 110 kW 148 hp engine. The 321D LCR has an operating weight of 51,875 lbs. The ACERT engine is Tier 3 certified for minimal exhaust.

Versatile: Able to handle most jobs thrown at it, the 321D LCR excavator rental can and will do a great job digging, scaping, moving and using various attachments to get the job site into working order.

Comfort: The 321D LCR possesses wide visibility, easy access to switches and has a monitor with full-color graphical display. It is an ergonomically comfortable cab for the operator.

Hydraulics: The CAT 320D LCR excavator rental hydraulics system is deisgned with reliability and controllability in mind. The optional Tool Control System provides enhanced flexibility.

What can you do with a CAT 321D LCR excavator rental?

  • Larger commercial or residential structure demolition
  • Dig up sewage pipes or electrical conduit
  • Break up large areas of concrete with the hammer attachment
  • Backfill trenches
  • Dig trenches
  • Prepare grounds for landscaping
  • Remove debris from construction sites
  • Remove larger trees or stumps
  • Load sand and gravel

We provide quick delivery on excavator rentals, and compact track loader rentals throughout the Lower Mainland of Greater Vancouver, the Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford,Chilliwack, Whistler, Victoria, Nanaimo. See our Delivery rates for more details.



Specifications


Engine Model Cat® C6.4 ACERT™
Net Flywheel Power 148.0 hp
Net Power – ISO 9249 148.0 hp
Bore 4.02 in
Stroke 5.12 in
Displacement 389.0 in3
Net Power – EEC 80/1269 148.0 hp
Net Power – SAE J1349 148.0 hp

WEIGHTS

Operating Weight 51875.0 lb
Operating Weight – Std. Undercarriage 51875.0 lb
Operating Weight – Long Undercarriage 51875.0 lb
Operating Weight – Long Undercarriage 2 53308.0 lb

SERVICE REFILL CAPACITIES

Fuel Tank Capacity 87.0 gal
Cooling System 6.6 gal
Engine Oil 8.0 gal
Swing Drive 2.1 gal
Final Drive (each) 2.1 gal
Hydraulic System (including tank) 55.0 gal
Hydraulic Tank 32.0 gal
Hydraulic Tank (Including suction pipe) 35.0 gal

SWING MECHANISM

Swing Speed 11.5 RPM
Swing Torque 45612.0 lb ft

DRIVE

Maximum Drawbar Pull 46311.0 lb
Maximum Travel Speed 3.5 mph

HYDRAULIC SYSTEM

Main Implement System – Maximum Flow (2x) 54.0 gal/min
Max. Pressure – Equipment 5076.0 psi
Max. pressure – Heavy Lift 5221.0 psi
Max. Pressure – Travel 5076.0 psi
Max. Pressure – Swing 3626.0 psi
Pilot System – Maximum Flow 9.0 gal/min
Pilot System – Maximum Pressure 566.0 psi
Boom Cylinder – Bore 4.7 in
Boom Cylinder – Stroke 49.6 in
Reach Stick Cylinder – Bore 5.5 in
B1 Family Bucket Cylinder – Bore 4.7 in
Reach Stick Cylinder – Stroke 59.8 in
B1 Family Bucket Cylinder – Stroke 43.5 in

SOUND PERFORMANCE

Performance ANSI/SAE J1166 APR 90

STANDARDS

Brakes SAE J1026 APR90
Cab/FOGS SAE J1356 FEB88

TRACK

Number of Shoes (each side) – Long Undercarriage 49
Number of Track Rollers (each side) – Long Undercarriage 8
Number of Carrier Rollers (each side) – Long Undercarriage 2

DIMENSIONS

Transport width 125.2 in
Shipping Height 9.9 ft
