Komatsu PC78 UU

  Daily Weekly Monthly
+ Delivery Rate & Operator Rate
We honor the lowest rate on all long term rentals.

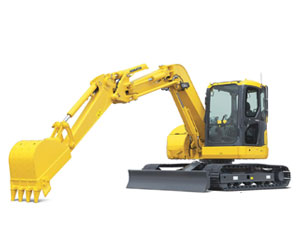

Known by those at the Komatsu company as the Komatsu PC 78UU-8 Compact Hydraulic Excavator, this midi excavator rental is an excellent choice for jobs that require a bigger machine without going all the way to a full heavy excavator. That's what midi excavators like this one are for - versatility.

The PC78 UU is ideal for smaller spaces

A highly maneuverable boom and a very large work envelope allows for minimal track movement and ensures efficiency at low operating costs. The size of this excavator rental is ideal for jobs that require careful movement so as not to disturb surroundings, such as a busy residential or urban environment.

The Komatsu PC78 UU rental is tailored for an urban environment

"Zero Swing" of the Komatsu technology allows the boom to be flexible, letting it get to hard-to-reach corners and work around senstive spots with pipes, foundation and wiring with ease and efficiency.

What can you do with a Komatsu PC78 UU midi excavator rental?

  • Backfill and dig trenches
  • Dig out sewage pipes or electrical conduits
  • Break concrete with a hammer attachment
  • Prepare ground for landscaping
  • Remove debris from construction sites
  • Fence pole installation
  • Tree planting
  • Stump removal
  • Load Sand and Gravel
  • Brush cutting

We provide quick delivery on all heavy equipment rentals, including: skid steer rentals, mini-excavator rentals, and compact track loader rentals throughout the Lower Mainland of Greater Vancouver, the Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford, Chilliwack, Whistler, Victoria, Nanaimo. See our Delivery rates for more details.



Model Komatsu SAA4D95LE-5
Horsepower, Gross - SAE J1995 (kW) 43
Horsepower, Net - ISO 9249 (kW) 41
​Horsepower, Net - SAE J1349 (kW) 41
​Rated RPM 1950
​Fan drive method Mechanical
​Displacement (litre) 3.26
​Number of cylinders 4


Operating weight - total (kg) ​7960
Bucket weight – KGA GP (kg) 207
Quick hitch weight – KGA (kg) 105

Operation / Application

Boom size (m) & type ​3.749 Standard
Arm size (m) & type 1.720 Standard
Bucket size – KGA standard GP (m3) 0.21
Arm crowd force – ISO (kgf) 3960
Bucket crowd force – ISO (kgf) 6250
Digging depth – maximum (mm) 4230
Digging reach – maximum (mm) 6400
Maximum reach @ ground level (mm) 6240
Swing speed (rpm) 1340
Related information Komatsu Genuine Attachments available include a dynamic cast quick hitch and a selection of bucket solutions.

Driveline and Swing

Drawbar pull, maximum (kg) ​6820
Gradeability (%)
Travel speeds (km/h) 2.9/5.0
Swing speed (rpm) 10.0
Related information The travel speed control has an automatic function.


Shoe size & type ​450mm Roadliner
Related information

Hydraulic System

Type ​HydrauMind System
Selectable work modes 5
Economy sub-mode selections
Main pump type Variable displacement, axial piston
Maximum flow rate (ltr/min)
Related information The attachment mode has a Power or Economy mode selection.

Dimensions (transport position)

Length, overall (mm) ​6060
Track length on ground (mm) 2235
Track gauge (mm) 1870
Overall track width (mm) 2320
Overall height (mm) 2730
Ground clearance (mm)
Related information Overall height is at transport position.
