Terex 2205M (Tires)

  Daily Weekly Monthly
Reg
$750
$2,900
$9,300
Corp
$600
$2,500
$8,500
+ Delivery Rate & Operator Rate
We honor the lowest rate on all long term rentals.

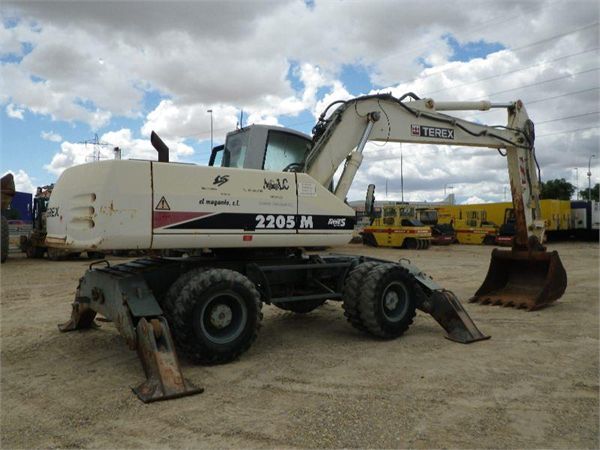

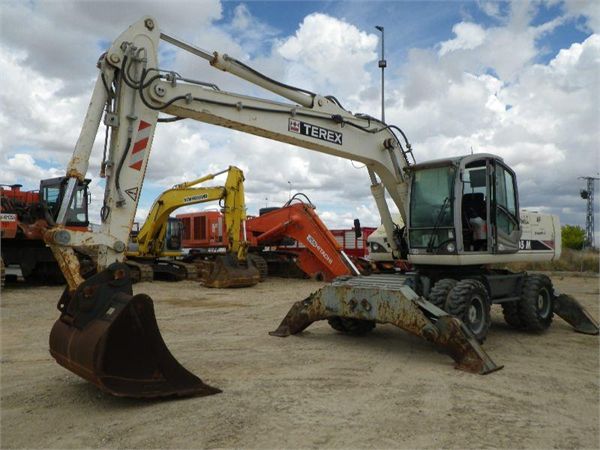

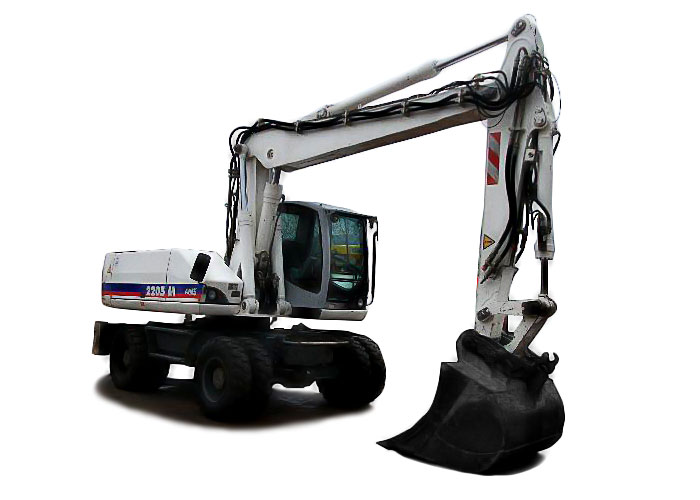

Terex 2205M Mobile Excavator Rentals available from Rent1

Demolition ready excavator rentals: Certain excavator rentals from us have the option to attach a hydraulic thumb and cab guard for demolition purposes. Ask us about our demolition-ready excavator rentals today!

Power: The Deutz engine model BF6M 2012 C nets out 182 hp (135.7 kw). This is very impresssive for an operating weight of only 46517.5

Mobility: No tracks. The Terex 2205M excavator rental uses heavy-duty tires and wheel frames to allow for ultimate mobility.

What can you do with a Terex 2205M Mobile Excavator rental?

  • Larger commercial or residential structure demolition
  • Dig up sewage pipes or electrical conduit
  • Break up large areas of concrete with the hammer attachment
  • Backfill trenches
  • Dig trenches
  • Prepare grounds for landscaping
  • Remove debris from construction sites
  • Remove larger trees or stumps
  • Load sand and gravel
  • Travel quicker and easier with mobile technology

We provide quick delivery on excavator rentals, and compact track loader rentals throughout the Lower Mainland of Greater Vancouver, the Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford,Chilliwack, Whistler, Victoria, Nanaimo. See our Delivery rates for more details.

Specifications

Engine
Make Deutz
Model BF6M 2012 C
Net Power 182 hp 135.7 kw
Power Measured @ 2000 rpm
Displacement 366 cu in 6 L
Aspiration Turbocharged
Operational
Operating Weight 46517.5 lb 21100 kg
Fuel Capacity 105.7 gal 400 L
Engine Oil Capacity 3.7 gal 14 L
Hydraulic System Fluid Capacity 58.1 gal 220 L
Operational Voltage 24 V
Hydraulic System Relief Valve Pressure 5511 psi 37997 kPa
Hydraulic Pump Type piston pump
Hydraulic Pump Flow Capacity 121.5 gal/min 460 L/min
Tire Size 10.00-20
Transmission
Max Travel Speed 12.4 mph 20 km/h
Swing Mechanism
Swing Speed 9 rpm
Swing Torque 49859.2 lb ft 67600 Nm
Buckets
Reference Bucket Capacity 1.5 yd3 1.1 m3
Minimum Bucket Capacity 0.99 yd3 0.76 m3
Maximum Bucket Capacity 1.8 yd3 1.3 m3
Boom/Stick Option (MEX) 1
Boom/Stick Option (MEX) 1 two piece boom 13'9" (4190mm) w/ stick 2210mm
Max Digging Depth 20.5 ft in 6250 mm
Max Cutting Height 35.9 ft in 10950 mm
Boom/Stick Option (MEX) 2
Boom/Stick Option (MEX) 2 two piece boom 13'9" (4190mm) w/ stick 2690mm
Max Digging Depth 22.1 ft in 6750 mm
Max Cutting Height 37.2 ft in 11350 mm
Boom/Stick Option (MEX) 3
Boom/Stick Option (MEX) 3 one piece boom 19'0" (5790mm) w/ stick 2210mm
Max Digging Depth 19.2 ft in 5850 mm
Max Cutting Height 29.7 ft in 9050 mm
Boom/Stick Option (MEX) 4
Boom/Stick Option (MEX) 4 one piece boom 19'0" (5790mm) w/ stick 2690mm
Max Digging Depth 21.7 ft in 6600 mm
Max Cutting Height 31.2 ft in 9500 mm
Dimensions
Overall Width 9 ft in 2750 mm
Overall Width - Outriggers Down 13.8 ft in 4210 mm
Height to Top of Cab 10.2 ft in 3120 mm
Wheelbase 8.9 ft in 2700 mm
Upper Structure Clearance 4.2 ft in 1272 mm
