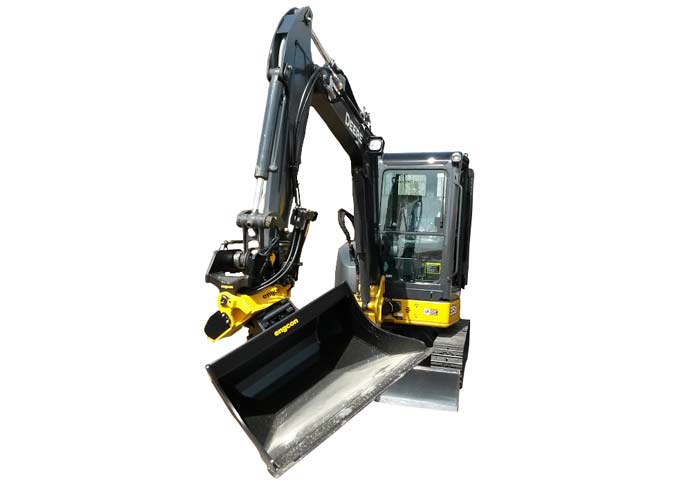

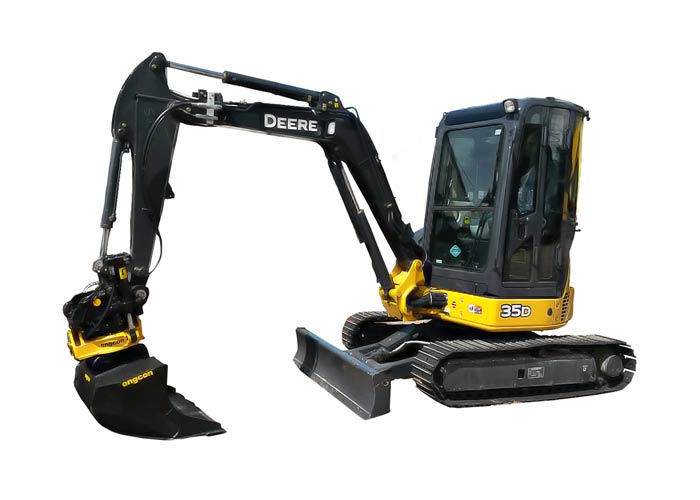

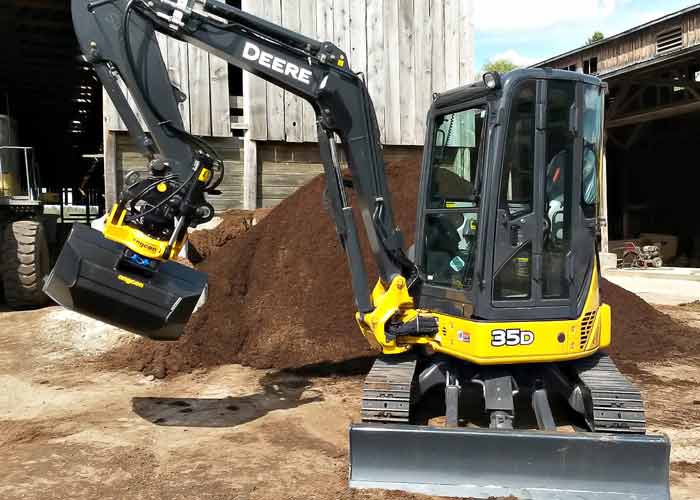

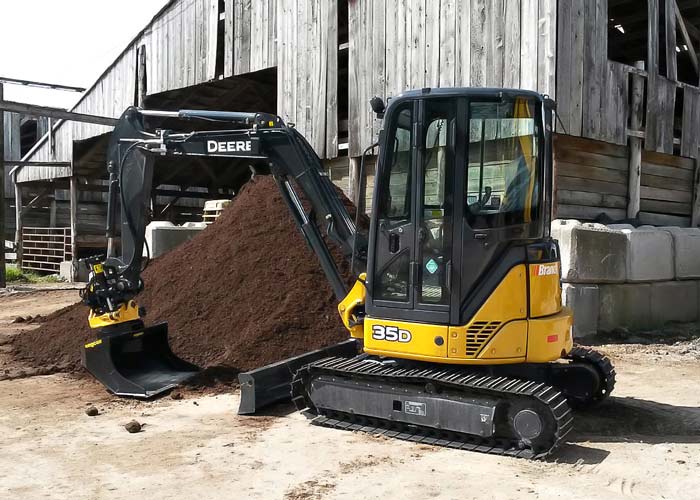

John Deere 35D with Tiltrotator
| Daily | Weekly | Monthly | |
|---|---|---|---|
| Reg |
$490
|
$1,725
|
$5,800
|
| Corp |
$455
|
$1,600
|
$4,900
|
Engcon Tiltrotator Rental with John Deere 35D Mini Excavator
Renting a John Deere 35D mini excavator equipped with the Engcon EC05B Tiltrotator will allow you to perform maneuvers that aren’t possible when you rent a standard mini excavator. The Engcon Rototilt will help you save time and money. Plus, not only will it improve productivity, but it will also enhance the quality and detail of your end product.
You’ll see that when you rent the Engcon Rototilt attachment it transforms your mini excavator into a robust precision tool. The perfect combination for residential and commercial landscaping or earth moving projects.
Engcon Tiltrotator Features & Benefits:
-
Infinite 360 Degree Rotation
-
40 Degree Tilt to Either side
-
Quick attachment / detachment
- Improve productivity by 25%
When you combine the multiple mini excavator attachments available for the John Deere 35D with the Engcon Tiltrotator you have the ability to make intricate movements all within tight spaces without compromising strength. An all in one efficient solution for your next earth moving project.
Experienced excavator operators all say that tiltrotator attachments improve productivity by up to 25%
Make sure your next mini excavator rental has an Engcon Tiltrotator so you can get the most out of your machine, and your time.
Rent1 is an authorized reseller of Engcon products in BC, please call for details 604 442 7368
See what other people are saying about the Engcon TiltRotator
Engcon Tiltrotators & John Deere 35D Mini Excavators are a great solution for:
Water & Sewage Pipes
-
Maneuver around piping, manholes, or stopends efficiently
Railway
-
Easily position your mini excavator to safely work on a rail-bound machine
Electrical
-
Rotate your bucket to simply excavate around cables without moving the machine
Construction Sites
-
Save time with less repositionings, and complete precise excavations with less spoil
Roads
-
Complete ditching, stripping, terracing, pipe laying & grapple operations efficiently
Landscaping
-
Using an Engcon Rototilt allows you to create beautiful landscapes without constraints
Golf Course Construction
-
Create intricate land shapes & bunkers with the least amount of movement
More information on Engcon Tiltrotators
We provide quick delivery on all skid steer rentals, mini-excavator rentals, and compact track loader rentals throughout the Lower Mainland of Greater Vancouver, the Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford,Chilliwack, Whistler, Victoria, Nanaimo. See our Delivery rates for more details
ENGINE
| Emission Rating | Interim Tier 4 / EU Stage 3B |
| Engine Make / Engine Model | Yanmar / 3 TNV 88 |
| Net Power, kW (hp) @ Rated rpm | 21.3 (28.6) @ 2400 |
| Gross Power, kW (hp) | not published |
| Displacement, L (cu in) | 1.606 (100.4) |
HYDRAULIC SYSTEM
| Pump Type | Variable Displacement + Gear |
| Total Pump Flow, L/m (gpm) | 80.2 (21.2) |
| Normal Relief Pressure, kPa (psi) | not published |
| Auxilliary Hyd. Max Flow Rate, L/m (gpm) | 66.2 (17.5) |
UNDERCARRIAGE
| Track Width, mm (in) | 300 (12) |
| Overall Track Length, mm (ft) | 2110 (6 ' 11 '') |
| Ground Clearance, mm (in) | 280 (11) |
| Width Over Std Track, mm (ft) | 1740 (5 ' 9 '') |
| Ground Pressure, Std. Track, kPa (psi) | 31.7 (4.6) |
| Travel speed 1, kph (mph) | 2.8 (1.7) |
| Travel speed 2, kph (mph) | 4.4 (2.8) |
| Travel speed 3, kph (mph) | not published |
| Travel speed 4, kph (mph) | not published |
| Gradeability, % | --- |
| Gradeability, deg | --- |
| Max. Drawbar Pull, kN (lbf) | not published |
BLADE
| Blade Width, mm (ft) | 1740 (5 ' 9 '') |
| Blade Height, mm (ft) | 370 (14.6) |
| Blade Max Lift Above Grd. Level, mm (in) | 370 (14.6) |
| Blade Max Lift Below Grd. Level, mm (in) | 390 (15.4) |
PERFORMANCE
| Standard Arm, mm (ft in) | 1350 (4 ' 4 '') |
| Max. Digging Height w/Std Arm, mm (ft) | 4870 (16 ' ) |
| Max. Digging Depth w/Std Arm, mm (ft) | 3050 (10 ' ) |
| Max. Digging Reach w/Std Arm, mm (ft) | 5310 (17 ' 1 '') |
| Max. Digging Reach @ G.L. w/Std Arm, mm (ft) | not published |
| Max. Dump Height w/Std Arm, mm (ft) | 3490 (11 ' 5 '') |
| Max. Vertical Wall Depth w/Std Arm, mm (ft) | not published |
| Min. Front Swing Radius, mm (ft in) | 2070 (6 ' 9 '') |
| Min Front Swing Radius w/Boom Swing, mm (ft) | --- |
| Boom Swing Angle - left, deg | 72 |
| Boom Swing Angle - right, deg | 62 |
| Lift Cap. Over Front @ 10' G.L. (incl bckt), kg (lb) | 1505 (3135) |
| Lift Cap. Over Side @ 10' G.L. (incl bckt), kg (lb) | 653 (1439) |
| Max Arm Digging Force, kN (lb) | 19.1 (4294) |
| Max Bucket Digging Force, kN (lb) | 27.5 (6182) |
| Tail Swing Radius, mm (ft in) | 870 (2 ' 10 '') |
| Swing Speed, rpm | 9.1 |
TRANSPORT SPECIFICATIONS
| Transport Length, mm (ft) | 4650 (15 ' 3 '') |
| Transport Height, mm (ft) | 2460 (8 ' 1 '') |
| Transport Width, mm (ft) | 1740 (5 ' 9 '') |
CAPACITIES
| Fuel Tank, L (gal) | 40 (10.6) |
| Hydraulic Reservoir, L (gal) | 32 (8.5) |
TILTROTATOR
| Model | EC05B |
| Weight (Kg) | from 155 |
| Tilt Range | 2x40 |
| Recommended Hydraulic Flow SS5/SS10 (l/min) | 40 |
| Recommended Hydraulic Flow SS9 tilt/rotation (I/min) | 15/30 |
| Max Hydraulic Pressure (MPa) | 22 |
| Standard mountings | s40 s45 |
| Max bucket width recommended by engcon (mm): | 1200 |
| Max tensile stress (kNm) | 45 |
| Base machine weight (t) | 3-5 |
WEIGHT
| SAE Operating Weight, kg (lb) | 3520 (7760) |
