John Deere 325D

  Daily Weekly Monthly
Reg
$300
$1,200
$3,720
Corp
$250
$1,000
$3,100
+ Delivery Rate & Operator Rate
We honor the lowest rate on all long term rentals.

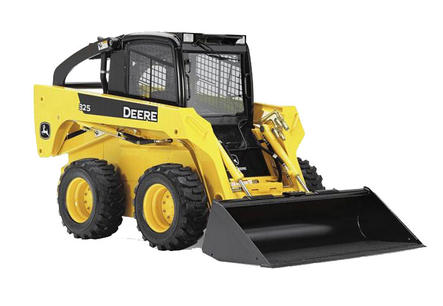

The John Deere 325D Skid Steer is easy to transport between job sites, and is also very comparable in power to other skid steers around its size. The difference of the 325D skid steer from smaller models is a noted increase in power by over 10 hp to a power output of 56.7 kW (76 hp) @ 2300 rpm.

Compact: The 325D skid steer rental is small and compact. It's approximately 63 inches wide. The 325D manoeuvres confined areas and tight spots with ease. A 60/40 weight distribution allows these skid steers the stability required to handle heavy loads, work on steeper slopes and provide front-of-machine downforce.

Powerful: The 325D Skid Steer's Turbocharged 2.4L diesel engine delivers 47.1 kW (63 hp), allowing you to carry loads up to 2,000 lbs. (Tipping Load: 4,000 lbs.) - The engine offers a net power output of 56.7 kW (73 hp) @ 2300 rpm. The 325D uses an engine that is Interim Tier 4 emission certified. A 66-liter gas tank allows the 325D skid steer rental to function longer for more efficiency and fewer fillups.

Visibility: The John Deere 325D Skid Steer's superior visibility gives you a clear view of the bucket and the tire edges. (Helpful in close quarters). The cab has a 360-degree visibility for uninterrupted viewing of the sides, above and below. A low-sloped rear hood allows easy visibility through the rear of the 325D

Superior bucket angle: The 325D's 40-degree dump angle allows the bucket to empty all content (including sticky material). A 60/40 weight distribution throughout the machine lets it work with heavy loads on steeper terrain - this also allows for more down force in the front of the machine, vs the 70/30 weight distribution in competitor models.

Comfort: The sculptured high back seat will help you keep productivity high. It has the ability to automatically retract as well. Levers are placed in such a way so as to decrease effort required to use them. Also, all John Deere skid steers come with cargo storange for cell phones and small items, as well as a 12-volt power outlet. It also features a cupholder.

Reliability: When you rent a skid steer like the John Deere 325D you don't have to worry about performance and reliability. As an example, the 325D's heavy‐duty drive chains never need adjusting and the battery is maintenance free.

Uses for a John Deere 325D Skid Steer rental:

  • Snow ploughing and removal
  • Loading and Unloading
  • Lifting debris
  • Pushing rocks and excess concrete
  • Cutting brush
  • Loading, unloading and packing filler such as gravel, sand etc.
  • Levelling and flattening areas
  • More uses with our Skid Steer Attachment Rentals

Wescan rentals delivers and maintains heavy equipment, earthmovers, excavators, skid steers, track loaders and attachments. We service the Lower Mainland of Greater Vancouver, Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford,Chilliwack, Whistler, Victoria, Nanaimo. Contact us for more details on our rental packages.

Dimensions

A. Length with Bucket 11.5 ft in 3518 mm
B. Width Over Tires 6.1 ft in 1872 mm
C. Height to Top of Cab 6.7 ft in 2055 mm
D. Wheelbase 4 ft in 1209 mm
E. Ground Clearance 9 in 229 mm
F. Length w/o Bucket 9.6 ft in 2934 mm
G. Clearance at Max Lift and Dump 8.3 ft in 2540 mm
H. Reach at Max Lift and Dump 34 in 864 mm

Engine

Make John Deere
Model 5030T
Gross Power 76 hp 56.7 kw
Net Power 70 hp 52.2 kw
Power Measured @ 2800 rpm
Displacement 186 cu in 3 L
Number of Cylinders 5
Aspiration Turbocharged

Operational

Operational Weight 8390 lb 3806 kg
Fuel Capacity 24 gal 91 L
Operating Speed  mph  km/h
Max Speed 11 mph 17.7 km/h
Tire Size 12x16.5 8 PR SKS
Operating Voltage 12 V
Alternator Supplied Amperage 70 amps

Loader

Operating Load Rating 2500 lb 1134 kg
Tipping Load 5000 lb 2268 kg
Breakout Force 7500 lb 3401.9 kg
Bucket Capacity 0.65 yd3 0.5 m3

Hydraulic

Pump Flow Capacity 21.9 gal/min 83 L/min
Relief Valve Pressure 3100 psi 21373.7 kPa

Dimensions

Length with Bucket 11.5 ft in 3518 mm
Length w/o Bucket 9.6 ft in 2934 mm
Width Over Tires 6.1 ft in 1872 mm
Height to Top of Cab 6.7 ft in 2055 mm
Clearance at Max Lift and Dump 8.3 ft in 2540 mm
Wheelbase 4 ft in 1209 mm
Ground Clearance 9 in 229 mm
Reach at Max Lift and Dump 34 in 864 mm
Turning Radius from Center - inc bucket 83.7 in 2126 mm
