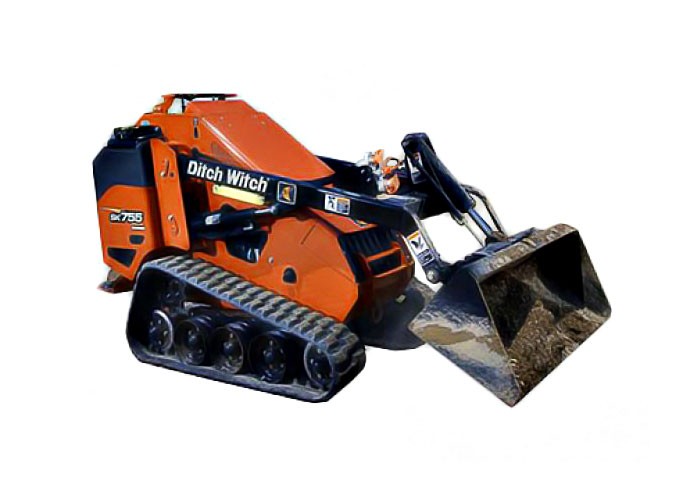

Ditch Witch SK750

  Daily Weekly Monthly
+ Delivery Rate & Operator Rate
We honor the lowest rate on all long term rentals.

Renting a Mini Track Loader

  • Efficient, low-maintenance Kubota diesel engines provide outstanding power for all machine functions—24.8 hp (18.5 kW) for the SK750 and 32.8 hp (24.5 kW) for the SK755.
  • Belt-free design eliminates worries about slipping, squeaking and breaking.
  • Takes over 70 attachments for utility, landscaping, plumbing, and other underground tasks.
  • A comfortable operator’s station comes standard with dual lever ground drive controls or the option of a single lever joystick.

Do you need to rent a Mini Track Loader MTL (Mini Rubber Track Skid Steer) for a commercial or residential project?  Consider the Ditch Witch SK750 Mini Track Loader for your next project.

Powerful: The Ditch Witch SK750 engine has a net ouput of 24.8 HP, allowing it to carry loads of up to 800 lbs. The SK750's tipping load is 2,285 lbs.

Visibility: Best in class visibility enhances productivity and safety.

Uses of a Ditch Witch SK750 Mini Track Loader Rental?

  • Backfill trenches
  • Dig trenches
  • Prepare grounds for landscaping
  • Snow removal
  • Remove debris from construction sites
  • Fence pole installation
  • Sod removal
  • Clear land and load rubbish bins
  • Plant trees
  • Remove stumps
  • Load pickup trucks, hoppers and spreaders
  • Grade and level driveways
  • Load sand and gravel


Operating height, max., std. bucket 103 in 2615 mm
Hinge pin height, max. 81 in 2057 mm
Overall height of machine 57 in 1450 mm
Overall length of machine, std. bkt  105 in 2670 mm
Overall length of loader, no attach. 86 in 2190 mm
Wheelbase/track length 43 in 1092 mm
Dump height, max., std. bucket 64 in 1626 mm
Reach fully raised, std. bucket  17 in 430 mm
Min. ground clearance (center/side)  8.9/3.7 in 170/124 mm
Angle of departure: 27°
Bucket rollback angle, ground level: 25°
Bucket rollback angle, full height: 90°
Dump angle, std. bucket: 35°
Bucket width, max. 44 in 1120 mm
Bucket width, min. 36 in 915 mm
Track width, max. 42 in 1065 mm
Track width, min. 36 in 915 mm
Loader width, excluding tracks 35 in 890 mm
Swing radius, max., std. bucket 65 in 1650 mm
Swing radius, no attach 44 in 1120 mm
Rear overhang max. 29 in 735 mm


Ground drive speed
Forward 4.7 mph 7.6 km/h
Reverse 4.7 mph 7.6 km/h
Ground pressure*
7-inch (180 mm) tracks 4.8 psi 0.33 bar
(ISO/CD 16754)
9-inch (230 mm) tracks 2.8 psi 026 bar
Departure angle: 27°
Tipping Capacity 2285 lb 1039 kg
Overall Capacity (35% of tipping capacity) 800 lb 364 kg
Machine Weight (no attachment, fluids full) 2890 lb 1314 kg


Auxiliary Circuit: double gear pump
Flow Rate (pump #1) 6.5 gpm 24 L/min
Flow Rate (pump #2) 5.5 gpm 21 L/min
Pressure 3500 psi 241 bar
Ground drive: dual hydrostatic pumps
Flow rate 13.9 gpm 52 L/min
Pressure 3500 psi 241 bar


Design Engine: Kubota D1105
Number of cylinders: 3
Displacement 68.5 in3 1.12 L
Bore 3.07 in 78 mm
Stroke 3.09 in 78.4 mm
Manufacturer's gross power rating
(per SAE J1995) 24.8 hp 18.5 kW
Estimated net power
(per SAE J1349) 23.1 hp 17.2 kW
Rated engine speed: 3000 rpm
**Maximum tilt angle, fore and aft: 30°
**Maximum tilt angle, side to side: 30°
Emissions compliance EPA Tier 4 EU Stage IIIa


Hydraulic reservoir capacity 9.2 35 L
Engine oil, with filter 4.2 qt 4 L
Fuel tank capacity 10.5 gal 40 L


Sound Power: 100 dbA
Sound pressure at operator ear: 87 dbA


SAE reserve capacity rating: 110 min
SAE cold crank rating @ 0° F (-18° C): 800 amps
Electrical system: 12V
