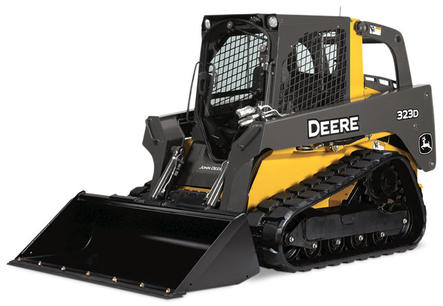

John Deere 323D

  Daily Weekly Monthly
+ Delivery Rate & Operator Rate
We honor the lowest rate on all long term rentals.

Power: The John Deere 323D is a multi terrain loader capable of exerting power in uneven areas. It possesses PowerTech 4024T engine that is Tier 2 emissions certified - it boasts 62 hp (46.2 kW).

Visibility: 360-degree visibility all around allows for a optimal safety and comfort when working.

Superior bucket angle: The 323D has a 40-degree dump angle for its bucket, allowing it to get rid of everything, including sticky material.

Comfort: The 323D's sculptured high back seat will help you keep productivity high, the cab and seat are ergonomically designed to sustain long periods of work, and the levers and pedals are placed just the right distance for optimal use.

Uses for a John Deere 323D Compact Track Loader Rental:

  • Digging and filling trenches
  • Ground preparation
  • Removing snow

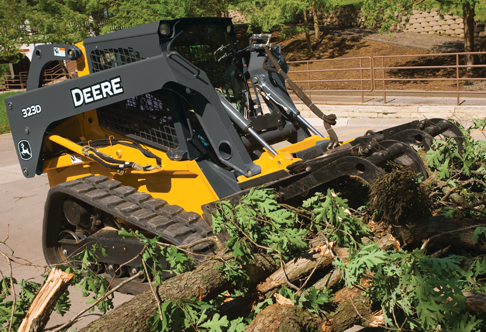

  • Moving debris off the construction site
  • installing fence poles
  • Sod removal
  • Clear land and load rubbish bins

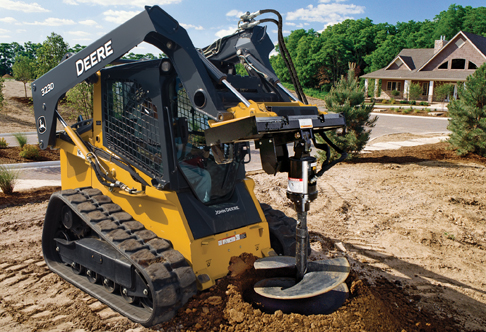

  • Planting trees and removing stumps
  • Load pickup trucks

Wescan rentals delivers and maintains heavy equipment, earthmovers, excavators, skid steers, track loaders and attachments. We service the Lower Mainland of Greater Vancouver, Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford,Chilliwack, Whistler, Victoria, Nanaimo. Contact us for more details on our rental packages.


Emission Rating Interium Tier 4 / Stage 3B
Engine Make / Engine Model John Deere / PowerTech E 4024HT
Net Power, kW (hp) @ Rated rpm 51.4 (69) @ 2300
Gross Power, kW (hp) 55 (74)
Net Peak Torque, N-m (lb-ft) 260 (192)
Displacement, L (cu in) 2.4 (149)
Engine Aspiration Turbo. intercooled
Fuel Capacity, L (gal) 70 (19)


Standard Pump Flow, L/min (gpm) 72 (19)
Optional High Flow, L/min (gpm) 110 (29)
System Pressure, kPa (psi) 23789 (3450)
Hydraulic power, kW (hp) 29.8 (40)
Optional high flow hydraulic power, kW (hp) 46.2 (62)


SAE Rated Operating Capacity, kg (lb) 1042 (2295)
Tipping Load, standard, kg (lb) 3257 (7175)
Breakout Force Boom, kN (lb) 16.8 (3700)
Breakout Force Bucket, kN (lb) 25.4 (5600)
Vertical lift geometry Yes


Maximum Ground Speed, standard, kph (mph) 9.8 (6.1)
Two Speed Transmission Ground Speed, kph (mph) 13.7 (8.5)
Standard Rubber Track Width mm (in) 320 (12.6)
Ground Pressure, Standard Track, kPa (psi) 37.2 (5.4)
Track Guage, center to center, mm (in) not published


Length with Bucket, mm (in) 3360 (132)
Length Without Bucket, mm (in) 2740 (108)
Width Without Bucket, mm (in) 1830 (72)
Height to ROPS, mm (in) 2000 (79)
Height to Hinge Pin, mm (in) 3000 (118)
Dump Height, mm (in) 2400 (95)
Dump Reach, mm (in) 920 (28.4)
Dump Angle, degrees 42
Bucket Rollback @ ground, degrees 32
Ground Clearance, mm (in) 250 (9.8)
Angle of Departure, degrees 25


SAE Operating Weight, kg (lb) 3882 (8550)
