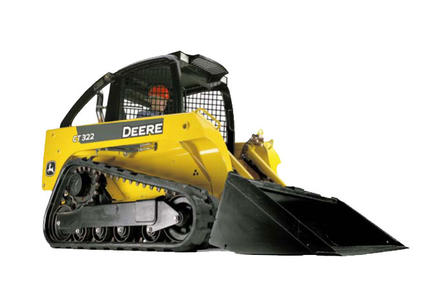

John Deere CT322

  Daily Weekly Monthly
+ Delivery Rate & Operator Rate
We honor the lowest rate on all long term rentals.

Power: The John Deere CT322 is a multi terrain loader capable of exerting power in uneven areas. It possesses PowerTech 4024T engine that is Tier 2 emissions certified - it boasts 62 hp (46.2 kW).

Visibility: 360-degree visibility all around allows for a optimal safety and comfort when working.

Superior bucket angle: The CT322 has a 40-degree dump angle for its bucket, allowing it to get rid of everything, including sticky material. .

Comfort: The CT322 sculptured high back seat will help you keep productivity high, the cab and seat are ergonomically designed to sustain long periods of work, and the levers and pedals are placed just the right distance for optimal use.

Uses for a John Deere CT322 Compact Track Loader Rental:

  • Digging and filling trenches
  • Ground preparation
  • Removing snow
  • Moving debris off the construction site
  • installing fence poles
  • Sod removal
  • Clear land and load rubbish bins
  • Planting trees and removing stumps
  • Load pickup trucks

Wescan rentals delivers and maintains heavy equipment, earthmovers, excavators, skid steers, track loaders and attachments. We service the Lower Mainland of Greater Vancouver, Fraser Valley and Vancouver Island: Vancouver, Burnaby, Poco, Port Coquitlam, Port Moody, Surrey, White Rock, Langley, New Westminster, Delta, Coquitlam, Ladner, Tsawwassen, Richmond, North Vancouver, West Vancouver, Pitt Meadows, Maple Ridge, Mission, Abbotsford,Chilliwack, Whistler, Victoria, Nanaimo. Contact us for more details on our rental packages.

Selected Dimensions

A. Length w/ Bucket 10.5 ft in 3195 mm
B. Width Over Tracks 6 ft in 1816 mm
C. Height to Top of Cab 6.4 ft in 1951 mm
E. Ground Clearance 9.6 in 244 mm
F. Length w/o Bucket 8.5 ft in 2591 mm
G. Clearance at Max Lift and Dump 7.6 ft in 2306 mm
H. Reach at Max Lift and Dump 2.7 ft in 808 mm


I. Track Gauge 4.9 ft in 1496 mm


Make John Deere
Model 4024T
Gross Power 66 hp 49.2 kw
Net Power 62 hp 46.2 kw
Power Measured @ 2800 rpm
Displacement 149 cu in 2.4 L
Number of Cylinders 4
Aspiration Turbocharged


Operating Weight 8305 lb 3767 kg
Fuel Capacity 18 gal 68 L
Operating Voltage 12 V
Alternator Supplied Amperage 70 amps
Max Speed - low range 5.5 mph 8.9 km/h
Max Speed - high range 8.5 mph 13.8 km/h


Ground Pressure 5.1 psi 35.2 kPa
Number of Track Rollers per Side 4
Width of Track 12.6 in 320 mm
Track Gauge 4.9 ft in 1496 mm


Operating Load 2178.2 lb 988 kg
Tipping Load 6400 lb 2903 kg
Breakout Force 6050 lb 2744.2 kg


Pump Flow 19 gal/min 72 L/min
Relief Valve Pressure 3450 psi 23786.9 kPa


Width Over Tracks 6 ft in 1816 mm
Length w/ Bucket 10.5 ft in 3195 mm
Length w/o Bucket 8.5 ft in 2591 mm
Height to Top of Cab 6.4 ft in 1951 mm
Ground Clearance 9.6 in 244 mm
Clearance at Max Lift and Dump 7.6 ft in 2306 mm
Reach at Max Lift and Dump 2.7 ft in 808 mm
Turning Radius from Center - inc bucket 78.9 in 2004 mm
